Material selection failures in high-volume manufacturing usually stem from misunderstanding metal behavior under stress. You end up with high scrap rates, damaged tooling, and field failures. Procurement and engineering teams have to balance yield strength, formability, and corrosion resistance. You also have to manage material costs and supply chain reliability to keep production lines running. Establishing a strict framework for evaluating alloy compositions, dimensional specs, and temper designations prevents these issues. You must align the metallurgical properties of your raw materials directly with the mechanical demands of your tooling. This guide breaks down the exact technical parameters required to evaluate and select coiled metals for heavy fabrication, stamping, and automated production.
Alloy grade dictates baseline chemical properties (corrosion resistance, weldability), while aluminum coil temper dictates mechanical properties (hardness, ductility). Both must be specified together for manufacturing success.
Selecting pure aluminum coil is generally limited to chemical and electrical applications due to its low structural strength, requiring alloying elements for most industrial uses.
The choice between 3003 aluminum coil and 5052 aluminum coil hinges on the trade-off between extreme formability, cost-effectiveness, and higher tensile strength.
Failing to align temper designations with fabrication methods (like tight-radius bending or deep drawing) introduces severe implementation risks, including micro-cracking and structural fatigue.
Specifying coil over flat sheet is a strategic decision for high-volume production, requiring precise attention to coil widths, gauges, and continuous feed tolerances.

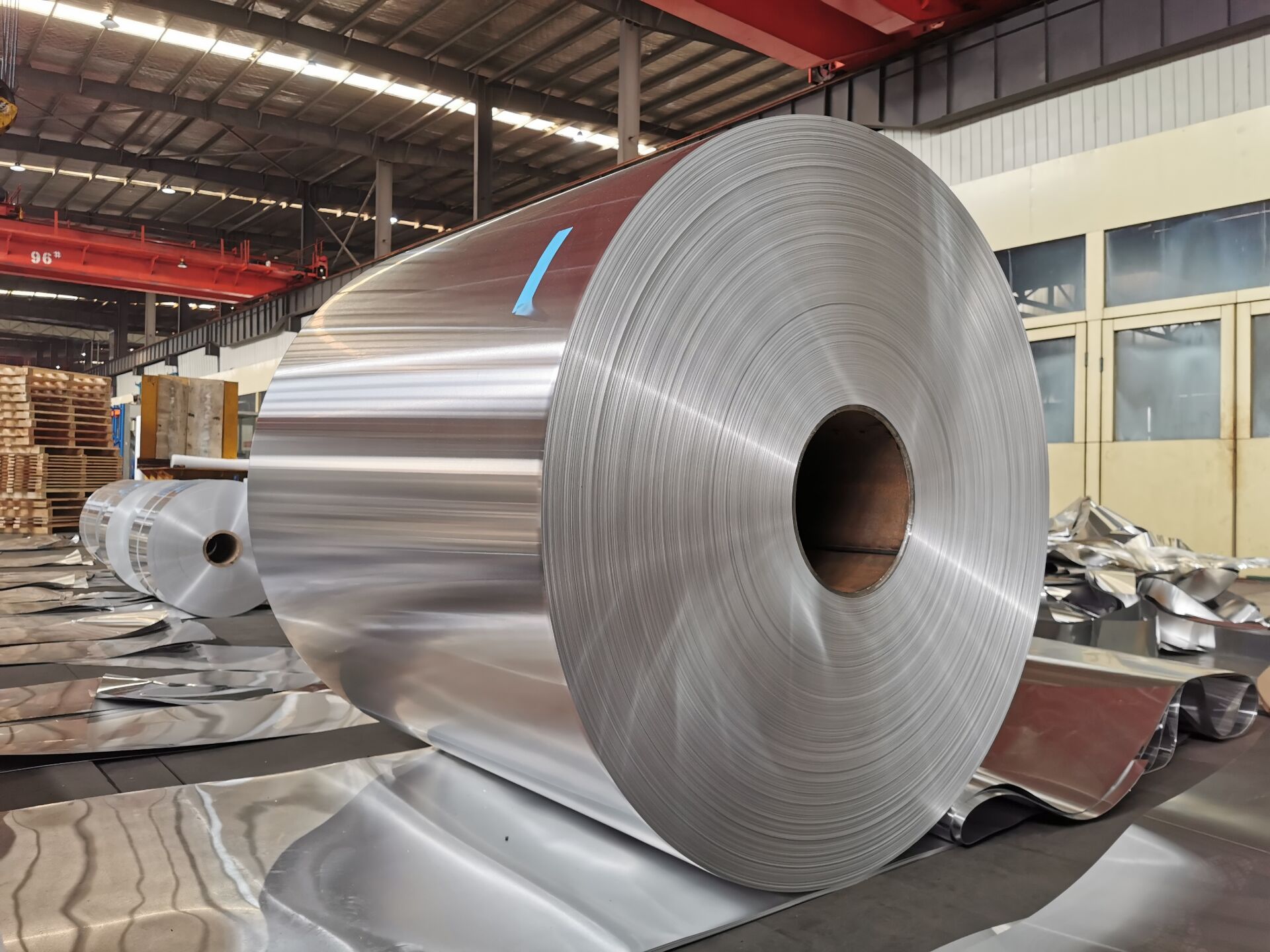

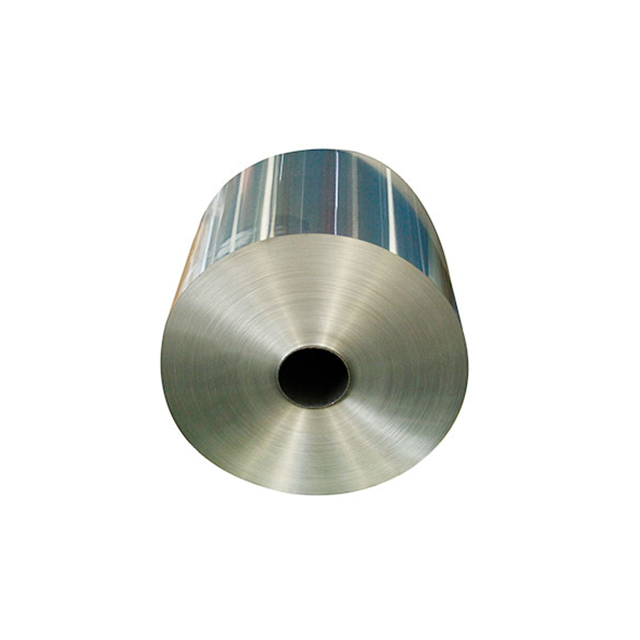

Choosing industrial aluminum coil over pre-cut sheets fundamentally transforms high-volume manufacturing operations. Coiled metal enables continuous feed capabilities for automated roll forming and progressive stamping lines. Feeding a continuous strip through a straightener and into a servo-driven press eliminates the stop-and-start downtime associated with loading individual flat blanks. This continuous flow significantly increases machine throughput and reduces manual handling requirements on the shop floor.
It also drastically reduces edge scrap. When you stamp parts from a continuous strip, you optimize nesting layouts. You completely eliminate the dead space left at the leading and trailing edges of standard cut sheets. Operators can run thousands of parts before needing to load a new master coil. This maximizes spindle time and overall equipment effectiveness. A standard progressive die setup running coil stock can easily outpace a manual sheet-fed operation by a factor of ten.
Production Metric | Pre-Cut Sheet Processing | Continuous Coil Processing |
|---|---|---|
Material Handling Time | High (Manual loading per blank) | Low (Automated decoiler feed) |
Edge Scrap Rate | 12% - 18% average | 3% - 5% average |
Machine Uptime | Intermittent (Frequent stops) | Continuous (High throughput) |
Tooling Wear | Inconsistent entry angles | Stable, linear feed alignment |
Industrial material selection demands strict adherence to baseline success criteria before production begins. Dimensional stability ranks first among these requirements. The metal must maintain a highly consistent gauge and width throughout the entire run to prevent tooling jams. Consistent mechanical properties across the entire coil length ensure predictable behavior during automated fabrication. If yield strength fluctuates from the outer wrap to the inner core, stamping dies will produce parts with varying degrees of springback.
Automated lines require absolute predictability. Any deviation in hardness or ductility forces operators to stop the line, adjust press brake tonnage, or shim the stamping dies to compensate for material inconsistencies. You must verify incoming material before it hits the production floor.
Verify the master coil width against the specified tooling clearance to prevent edge binding in the feeder.
Measure the material gauge at multiple points along the leading edge to confirm it falls within acceptable ASTM tolerances.
Inspect the coil edges for burrs or slitting damage that could introduce micro-cracks during deep drawing operations.
Check for excessive camber by rolling out a sample length and measuring the deviation from a straight line.
Unalloyed materials present distinct limitations in heavy manufacturing environments. Engineers quickly realize that pure aluminum coil is insufficient for heavy fabrication and structural components. The 1000 series lacks the necessary yield strength to bear significant mechanical loads or resist impact. Its inherent softness makes it highly susceptible to denting, scratching, and deformation during aggressive handling on the factory floor.
While highly ductile and easy to bend, unalloyed aluminum cannot withstand the stresses of heavy fabrication without yielding prematurely. Most industrial applications require the addition of alloying elements like manganese, magnesium, or silicon. These elements lock the grain structure and achieve the required structural integrity for end-use performance. Using unalloyed metal in a load-bearing bracket will result in immediate field failure.
Predicting manufacturing outcomes requires a unified specification approach. You cannot evaluate chemical composition independently of thermomechanical history. The alloy dictates baseline chemical traits like corrosion resistance, anodizing response, and weldability. The temper determines the final mechanical hardness and elongation capabilities.
Physical dimensions, including precise width, gauge, and edge condition, dictate how the material feeds through your decoiler and tooling. Evaluating all three variables simultaneously allows engineers to accurately predict forming behavior. You can calculate precise bend deductions, minimize edge scrap, and maximize return on investment across the production run. A failure to specify tight gauge tolerances, for example, will completely negate the benefits of selecting the correct alloy and temper.
The 1000 series consists of 99% or higher pure aluminum by weight. This specific composition delivers exceptional electrical conductivity and superior resistance to chemical corrosion. Primary use cases include electrical busbars, chemical storage equipment, transformer windings, and specialized heat exchangers. The lack of alloying elements keeps the thermal and electrical pathways completely unobstructed.
However, you must address its mechanical limitations. This series possesses exceptionally low yield strength and tensile strength. It requires careful handling during fabrication, transit, and installation. You must limit its use strictly to non-load-bearing applications where electrical conductivity or chemical purity outweighs any structural demands placed on the final assembly. If you try to machine this material, it tends to gum up cutting tools due to its extreme softness.
The 3000 series introduces manganese as the primary alloying element. This specific addition increases the metal's overall strength by roughly 20% over the 1000 series without sacrificing its excellent workability. 3003 aluminum coil stands as the highly cost-effective, industry-standard choice for general-purpose fabrication. It dominates the production of HVAC components, architectural roof paneling, acoustic ceilings, and automotive heat shields.
The material delivers highly reliable performance across various joining methods, including TIG welding, MIG welding, and brazing. It also excels in continuous roll-forming applications where severe, multi-stage bends are required to form complex profiles without cracking. When you need a balance of moderate strength, excellent formability, and low material cost, 3003 is the default engineering choice.
The 5000 series utilizes magnesium as its primary alloying element. Magnesium significantly increases tensile strength while providing exceptional resistance to salt-water corrosion and marine atmospheres. 5052 aluminum coil serves as the premium choice for marine environments, transportation equipment, fuel tanks, and demanding sheet metal fabrication. This grade fits perfectly into both rapid prototyping and high-volume production runs requiring structural rigidity.
You must manage the inherent manufacturing trade-off. The higher strength of 5052 results in slightly reduced formability compared to 3003, requiring larger bend radii in your press brake tooling. It also commands a higher initial material price point per pound. You will need higher tonnage on your stamping presses to shear and form 5052 effectively.
Alloy Grade | Primary Alloying Element | Typical Yield Strength (ksi) | Best Application Environment |
|---|---|---|---|
1100 | None (99% Pure) | 5 - 15 | Electrical, Chemical Storage |
3003 | Manganese | 10 - 25 | HVAC, General Fabrication |
5052 | Magnesium | 20 - 35 | Marine, Structural Components |
Understanding aluminum coil temper prevents severe fabrication defects on the shop floor. Temper defines the specific condition produced by mechanical or thermal treatment at the mill. It dictates the metal's final hardness, yield strength, and ductility. The primary designations relevant to coiled products include "O" for Annealed or dead-soft, "H" for Strain Hardened, and "T" for Thermally Treated.
The "O" temper represents the lowest strength and highest ductility state, achieved by heating the metal to relieve all internal stresses. The "H" tempers apply specifically to non-heat-treatable alloys like the 3000 and 5000 series. These alloys rely entirely on cold working through rolling mills to increase strength. As the metal passes through the rollers, the crystal lattice deforms, creating dislocations that harden the material.
The two-digit H-temper system provides highly specific information about the hardening process. The first digit signifies the specific processing method applied at the mill. H1 means the metal was strain hardened only. H2 indicates the metal was strain hardened and then partially annealed to recover some ductility. H3 means the metal was strain hardened and stabilized with low heat, a process required for preventing age-softening in magnesium-bearing alloys like 5052.
The second digit, ranging from 1 to 8, represents the final degree of hardness. For example, H32 designates a quarter-hard temper. H34 indicates a half-hard state. H38 represents a full-hard condition with maximum tensile strength but minimal elongation. Specifying the wrong second digit will either leave your part too weak to function or too brittle to form.
Increasing the hardness of the metal inversely affects the minimum allowable bend radius during fabrication. As you move from an H32 to an H38 temper, the material loses significant ductility. Forcing a full-hard metal into a tight 90-degree bend places immense tension on the outer radius of the bend line. This results in material fracture, micro-cracking, and complete joint failure.
Tearing becomes a major risk during press brake forming if the temper is too hard for the required tooling geometry. Harder tempers exhibit greater springback variations. Operators must over-bend the material to achieve the desired final angle. This complicates automated forming processes and requires extensive die tryouts to dial in the exact over-bend angle. You must match the V-die opening and punch radius to the specific temper you order.
Aggressive forming operations require highly ductile material combinations to succeed. Specify 3003-O or 5052-O for severe stamping and deep drawing applications. The "O" temper provides maximum elongation capabilities. This dead-soft condition prevents tearing during aggressive elongation and deep cavity forming.
When a punch forces the metal into a die cavity, the material must stretch evenly across the punch face and flow smoothly over the draw ring. Any residual hardness from cold working increases the risk of side-wall splitting, galling, and structural failure during the draw. Using an annealed temper ensures the metal flows rather than fractures under extreme press tonnage. You also need to ensure proper lubrication to prevent the soft aluminum from cold-welding to your steel tooling.
Load-bearing components operating in harsh environments demand high-strength, corrosion-resistant combinations. Specify 5052-H32 or 5052-H34 for structural brackets, marine hulls, and transportation chassis components. The magnesium content provides the necessary chemical defense against saltwater degradation and galvanic corrosion.
The H3x temper stabilizes the metal against age-softening in fluctuating outdoor temperatures. This thermal stabilization ensures the component maintains its designed yield strength over its entire lifecycle. It delivers long-term structural value in demanding field conditions where material fatigue could lead to catastrophic assembly failure. Do not use "O" temper for these applications, as the metal will simply bend under operational loads.
Architectural applications prioritize surface aesthetics and visual integrity over extreme tensile strength. You must evaluate the requirements for surface finish consistency, absolute flatness, and anodizing compatibility. These visual requirements often favor specific 5000 series alloys with highly controlled tempers.
Achieving a uniform anodic coating requires a consistent grain structure throughout the coil. Variations in the temper or rolling process lead to severe color mismatches and streaking after anodizing. Strict flatness tolerances, usually requiring tension-leveling at the mill, are necessary to prevent "oil-canning" or visual distortion on large building facades reflecting sunlight. A wavy coil will produce a wavy architectural panel.
Balancing material costs against actual performance requirements prevents over-engineering and wasted budget. You must weigh the cost-effectiveness of 3003 against the premium performance of 5052. If a component operates in a dry, indoor environment and requires only moderate structural strength, 3003 delivers optimal value.
Specifying 5052 for that same indoor component results in unnecessary material spend. Conversely, downgrading to 3003 for an exterior marine bracket to save money will lead to rapid pitting corrosion and inevitable field failures. Match the alloy's specific chemical and mechanical strengths directly to the environmental demands of the end-use. Review your bill of materials and challenge any specification that seems over-engineered for its actual operating environment.
Inconsistent mill tolerances disrupt automated manufacturing lines and destroy production schedules. You face significant risks regarding gauge variation, width inconsistencies, and camber within a single master coil. Camber, the deviation of a side edge from a perfectly straight line, causes the metal to wander as it feeds into roll formers, leading to twisted profiles.
Gauge variations alter the bending dynamics inside the press brake, leading to inconsistent part dimensions and out-of-tolerance angles. These defects increase edge scrap rates and force extensive machine downtime for tooling adjustments. Specify strict ASTM tolerances for both alloy/temper and physical dimensions when ordering Aluminum Coil. Demand inspection reports before the material ships from the service center.
Surface contamination severely impacts downstream processing and final product quality. Residual rolling oils left over from the mill prevent proper paint adhesion, leading to flaking and peeling in the field. Natural oxidation layers, if not managed properly, interfere with welding arcs, cause erratic puddle behavior, and create porosity in the weld joint.
Improper surface treatments lead to total coating failures and poor anodizing results. Specify the required surface cleanliness level directly from your supplier. Many applications require a chemical wash, degreasing, or specific tension-leveling process to ensure the surface is ready for immediate powder coating or robotic welding. Do not assume the coil arrives ready for paint.
Improper storage destroys coiled metal before it ever reaches the production line. Water staining occurs rapidly when condensation forms between the tightly wound layers of the coil, creating white rust that ruins the surface finish. Galvanic corrosion happens when the aluminum contacts dissimilar metals, like steel banding or wet wooden pallets, during transit.
Implement strict mitigation strategies at your facility. Require climate-controlled storage facilities to prevent the temperature swings that cause condensation. Ensure proper packaging using Volatile Corrosion Inhibitor (VCI) paper or heavy-duty poly wrapping. Utilize strict First-In, First-Out (FIFO) inventory management to minimize the time coils sit in storage. Never store aluminum coils directly on a concrete floor.
Take these immediate next steps to secure your material supply and optimize production:
Request comprehensive material test reports (MTRs) from your suppliers for every coil delivery to verify chemical composition and mechanical properties.
Conduct small-batch prototype runs to physically test bend radii limits, measure springback variations, and validate tooling geometry before full production.
Establish clear, documented tolerance agreements for gauge, width, and camber with your service center before committing to high-volume purchases.
Audit your facility's storage conditions to eliminate moisture exposure, upgrade packaging requirements, and prevent water staining on raw inventory.
A: The primary difference lies in their alloying elements and resulting strengths. 3003 utilizes a manganese base, offering high formability, excellent workability, and cost-effectiveness for general fabrication. 5052 features a magnesium base. This provides significantly higher tensile strength and superior marine-grade corrosion resistance, making it ideal for demanding structural applications.
A: The temper designation indicates the metal's final hardness and ductility. Achieved through specific heat treatments or mechanical strain hardening at the mill, the temper directly impacts how the metal behaves during fabrication. It determines the material's yield strength and dictates exactly how tightly the metal can be bent or formed without fracturing.
A: No, 1000 series pure aluminum lacks the necessary tensile and yield strength required for load-bearing structures. Its inherent softness makes it highly susceptible to deformation under mechanical stress. It is much better suited for electrical conductivity applications, chemical storage equipment, and heat exchangers where structural rigidity is not required.
A: Coiled metal allows for continuous feed processes like roll forming and progressive stamping. Feeding a continuous strip significantly increases production speed by eliminating the downtime of loading individual flat sheets into a press. It also drastically reduces material scrap by optimizing nesting layouts and minimizing waste at the edges.
A: The "O" (annealed) temper is the best choice for deep drawing operations. This dead-soft condition provides the maximum ductility necessary to stretch the metal deeply into a die cavity. The high elongation capabilities of the "O" temper prevent the material from tearing, side-wall splitting, or fracturing during aggressive forming.
A: Temper and minimum bend radius share an inverse relationship. As the temper hardness increases, such as moving from a quarter-hard H32 to a full-hard H38, the metal loses significant ductility. Consequently, the minimum allowable bend radius must increase to prevent micro-cracking and structural failure along the outer bend line.
