Selecting the optimal internal components for chemical processing towers dictates plant capacity, energy consumption, and maintenance intervals. Plant managers and process engineers constantly balance competing priorities. You demand higher mass transfer efficiency and lower pressure drops. However, you also face strict capital expenditure limits, environmental regulations, and the harsh realities of fouling, corrosion, and unplanned downtime.
Deciding between Metal Random Packing and structured alternatives requires a rigorous evaluation of your specific process conditions. A mismatch here leads to flooded columns, off-spec products, or excessive energy use. This guide breaks down the technical mechanics and performance trade-offs of these systems. We will help you evaluate fluid dynamics, capacity limits, and installation logistics. By understanding these variables, you can confidently specify the right tower packing for your distillation or absorption application.
Cost vs. Efficiency: Metal random packing offers a highly cost-effective, easy-to-produce, and durable solution with lower initial CAPEX, while structured packing delivers superior mass transfer efficiency and lower pressure drop at a premium price.
Fouling Resilience: Random packing configurations generally handle particulate-heavy or fouling-prone fluids better than the tight, corrugated sheets of structured packing, reducing unplanned maintenance downtime.
Energy & Compliance: Structured packing is the standard for vacuum distillation and applications like Regenerative Thermal Oxidizers (RTOs) where minimizing pressure drop and meeting strict environmental emission regulations are critical.
Retrofitting Potential: Upgrading from legacy trays or older random packing to high-performance structured packing can significantly debottleneck existing columns, provided liquid distribution systems are also upgraded.
Procurement Speed: The simple manufacturing process of random packing allows for rapid production and shorter lead times, making it ideal for emergency turnarounds compared to custom-engineered structured blocks.
Before specifying any internal components, you must clearly define the primary operational target of your column upgrade or new vessel design. Engineers rarely replace internals without a specific performance deficit driving the project. You might need to push higher feed rates through an existing shell to meet new production quotas. Alternatively, your focus might be improving separation purity to achieve tighter overhead product specifications. Reducing energy consumption at the reboiler represents another common objective. Identifying this primary driver narrows your options immediately and sets the baseline for hydraulic calculations.
Every chemical plant operates under strict physical and chemical limitations. You must map out these constraints early in the design phase. Column height restrictions often dictate the required efficiency per meter of bed depth. If you cannot add height to the vessel, you must extract more theoretical stages from the existing tangent-to-tangent length. Operating pressure plays a massive role in selection. Deep vacuum systems behave entirely differently than high-pressure distillation columns. Fluid characteristics also dictate your material choices. You must account for liquid viscosity, corrosive properties, and the inherent fouling tendency of the process stream. Highly viscous liquids resist spreading into thin films, altering how different internal geometries perform under load.
To properly frame the engineering problem, field teams should execute the following evaluations before selecting internals:
Establish hydraulic limits based on the current vessel diameter and nozzle configurations.
Define the maximum allowable pressure drop across the entire bed depth.
Characterize the fouling tendency of the feed stream by reviewing historical maintenance logs.
Determine the exact number of theoretical stages required for the target separation.
Assess the mechanical integrity of existing support rings and distributor ledges.
Modern chemical processing faces increasingly stringent environmental oversight. Emission standards dictate the performance required from your scrubbers and exhaust systems. You must factor these regulations into your design criteria. Certain applications require ultra-high efficiency separation to meet local air quality mandates. Regenerative Thermal Oxidizers (RTOs) demand specific internal geometries to handle massive gas volumes efficiently without creating excessive backpressure on upstream equipment. Failing to meet these compliance thresholds results in severe operational penalties or forced unit shutdowns.
Engineering decisions always intersect with project management realities. You must establish acceptable payback periods for any operational upgrades. High-efficiency internals might reduce daily energy consumption, but they require larger upfront capital allocation. You need to balance these long-term operational savings against your immediate project budget. Furthermore, project lead times often dictate the final choice. Emergency turnarounds cannot wait months for custom-engineered solutions. You must evaluate how quickly manufacturers can deliver the required materials to the site, especially during unplanned outages where every day of lost production impacts the bottom line.
Dumped internals rely on thousands of individual pieces loaded loosely into a column bed. This installation method creates a highly tortuous, chaotic path for vapor and liquid. As liquid descends from the distributor pan, it cascades over the scattered metal surfaces. Vapor rises through the irregular voids, creating continuous turbulence. This chaotic interaction constantly renews the liquid surface. Surface renewal is critical for effective mass transfer. The random orientation ensures continuous mixing of the phases throughout the bed depth, preventing the fluid from establishing a single, undisturbed flow path.
Engineers select metal for these applications due to its exceptional mechanical strength. Stainless steel grades like 304 and 316, carbon steel, and specialty alloys withstand harsh chemical environments. Metal resists high operating temperatures that would easily melt or deform plastic alternatives. It also provides longevity in corrosive services. Deep beds exert massive downward force on the lower layers. Metal materials resist crushing under this immense weight, maintaining the necessary void fraction for gas flow. If the bottom layers crush, the bed loses its open area, leading to premature flooding and severe pressure drop spikes.
The geometry of dumped internals has evolved significantly over the decades. Early designs relied on basic Raschig rings. These simple metal cylinders provided surface area but suffered from poor internal liquid distribution and high aerodynamic drag. The solid walls forced vapor to flow entirely around the outside of the cylinder, creating dead zones inside the ring where no mass transfer occurred. The industry eventually moved toward more advanced geometries to eliminate these dead zones and improve overall performance.

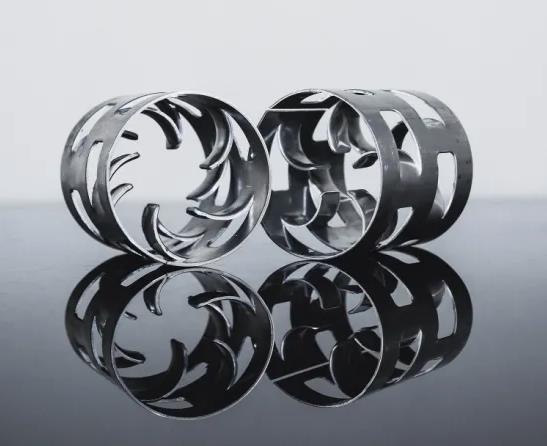

The modern standard is the metal pall ring. This design revolutionized column efficiency. Manufacturers stamp windows into the cylinder walls and bend the tabs inward toward the center. This open structure allows vapor and liquid to flow directly through the ring, not just around it. It dramatically increases the active surface area while reducing pressure drop. Beyond pall rings, high-performance saddle rings offer even greater efficiency. These advanced open-structure designs maximize the effective mass transfer area while minimizing resistance to upward gas flow, allowing for higher capacity in the same vessel diameter.
Dumped metal internals excel in specific, demanding environments. They offer a remarkably high tolerance for fouling. Particulate-heavy and dirty services quickly plug tighter geometries, but random structures allow solids to flush through the chaotic voids. This resilience makes them invaluable in heavy petrochemical refining, wastewater stripping, and applications where polymerization is a known risk.
Ease of production is another major advantage. Manufacturers stamp and form these pieces rapidly using automated presses. This rapid availability makes them ideal for fast-track projects. When a plant faces an emergency replacement during an unplanned outage, dumped rings are often available off-the-shelf in standard metallurgies. They serve as excellent absorption tower packing for large-diameter vessels. In these applications, extreme theoretical stage efficiency matters less than rugged reliability, resistance to upset conditions, and rapid installation.
Engineered block internals operate on a fundamentally different principle than dumped rings. Manufacturers arrange corrugated sheets of metal or wire mesh into large, precise blocks. These blocks stack tightly inside the column shell. This ordered geometry creates highly uniform vapor-liquid contact areas. The fluid does not follow a chaotic path. Instead, it flows along predictable, engineered channels. This uniformity eliminates the random dry spots and localized flooding common in dumped beds, provided the initial liquid distribution is flawless.
Surface area maximization drives the design of these blocks. Engineers use surface texturing, dimpling, and perforations to promote thin liquid film formation. The liquid spreads evenly across the corrugated metal as it descends. This thin film maximizes the active mass transfer area. The ordered geometric structures ensure that rising vapor contacts this liquid film with minimal aerodynamic resistance. The result is a highly efficient exchange of components between the gas and liquid phases. Each layer of blocks is typically rotated 90 degrees from the layer below it. This rotation forces the descending liquid and rising vapor to mix laterally, improving radial distribution across the column diameter.
The most significant advantage of ordered blocks is their exceptionally low pressure drop per theoretical stage. The vertical flow channels offer very little resistance to rising vapor. This characteristic is absolutely critical for vacuum distillation column packing. In deep vacuum systems, even a slight pressure drop across the bed raises the boiling point at the bottom of the column. Higher boiling points require higher reboiler temperatures, which causes thermal degradation of sensitive products. Engineered blocks prevent this degradation by keeping the pressure profile nearly flat across the entire bed.
These systems also deliver high capacity and superior mass transfer efficiency. They achieve a much lower Height Equivalent to a Theoretical Plate (HETP). You can achieve the required separation in a significantly shorter column, or extract much higher purity from an existing vessel. They are ideal for clean services, temperature-sensitive separations, and isomer separations. Furthermore, they are the standard for Regenerative Thermal Oxidizers (RTOs). RTOs require strict emission compliance and high energy efficiency, which these low-resistance blocks easily provide by handling massive volumetric gas flow rates with minimal fan power requirements.
When specifying structured packing, field teams must account for specific installation requirements:
Precise leveling of support grids to ensure the first layer of blocks sits perfectly flat.
Installation of wall wiper bands on every block layer to prevent liquid from bypassing down the vessel wall.
Careful segmentation of blocks to fit through existing column manways.
Strict foreign material exclusion (FME) protocols to prevent debris from blocking the narrow corrugations during installation.
Comparing these two technologies requires looking closely at liquid distribution behavior. Engineered blocks provide predictable, uniform liquid spreading. The corrugated sheets force the liquid to distribute laterally as it descends. This minimizes the risk of dry zones, assuming the distributor pan functions correctly. Dumped beds, however, carry inherent risks of localized maldistribution. Liquid naturally migrates toward the column walls over long distances. This wall-flow effect reduces the active mass transfer area in the center of the bed. To combat this, dumped beds often require liquid redistributors every few meters, which consumes valuable column height.
This difference directly impacts the HETP. Ordered blocks generally achieve a much lower HETP than an equivalent volume of dumped rings. You can design shorter column heights to achieve the exact same separation purity. In retrofitting scenarios, replacing dumped rings with ordered blocks instantly adds theoretical stages to an existing vessel. This allows you to improve overhead product purity or reduce the reflux ratio without altering the steel shell.
Aerodynamic efficiency separates these two options drastically. Engineered blocks feature vertical, open flow channels. Vapor rises through these channels with minimal friction. Dumped beds force vapor through a chaotic, twisting maze. Every change in direction consumes energy and creates pressure drop. The aerodynamic drag in a dumped bed is inherently higher, regardless of the specific ring geometry.
This pressure drop translates directly into energy consumption. High pressure drop requires higher temperatures in the reboiler to maintain vapor flow up the column. It also increases the load on overhead compressors in vapor recovery units. By utilizing low-pressure-drop internals, you significantly reduce reboiler duties. This reduction lowers overall plant energy consumption, providing substantial operational efficiency over the lifespan of the column.
Every column has a maximum capacity limit known as the flooding point. Flooding occurs when rising vapor velocity becomes so high that it prevents liquid from descending. Liquid backs up, filling the void spaces and halting mass transfer entirely. Engineered blocks typically offer a higher capacity limit before flooding occurs. The uniform channels allow higher vapor velocities without entraining the descending liquid. This characteristic makes them perfect for column debottlenecking projects where you need to push 20% to 30% more feed through an existing unit.
However, dumped rings provide sufficient capacity for many standard operations. If you are designing a basic stripping column or a standard absorption tower, you rarely need the absolute maximum capacity limits of engineered blocks. Dumped rings handle moderate to high liquid loads exceptionally well. They provide reliable throughput without the strict installation tolerances and engineering requirements of custom blocks.
Performance Metric | Dumped Metal Rings | Engineered Corrugated Blocks |
|---|---|---|
Mass Transfer Efficiency (HETP) | Moderate to High (Requires deeper beds to achieve target stages) | Very High (Allows for shorter column heights and tighter separations) |
Pressure Drop Profile | Moderate (Chaotic flow paths create inherent aerodynamic drag) | Very Low (Vertical channels minimize friction and pressure loss) |
Fouling Resistance | Excellent (Open geometry flushes solids and resists polymerization) | Poor (Tight corrugations trap particulates and plug easily) |
Capacity / Flooding Limit | Standard capacity suitable for most conventional towers | High capacity ideal for debottlenecking existing vessels |
Liquid Distribution Sensitivity | Forgiving (Can tolerate minor distributor imperfections) | Highly Sensitive (Requires perfect initial distribution to function) |
Installation Complexity | Low (Dumped directly into the bed via super sacks or chutes) | High (Requires precise block stacking and wall wiper installation) |
Theoretical performance means nothing if the column plugs after three months of operation. You must evaluate the fouling potential of your process stream before making a selection. Engineered blocks are highly vulnerable to solid accumulation. The tight corrugations act like filters, trapping particulates, scale, and promoting polymerization. Once fouled, these blocks are notoriously difficult to clean. Chemical washes often fail to penetrate the blocked channels. Maintenance teams usually have to cut out and discard the fouled blocks entirely, leading to extended turnaround times and heavy labor requirements.
Dumped rings offer superior resilience in dirty services. The open geometry of a pall ring resists plugging. Solids tend to wash through the chaotic voids rather than accumulating. When maintenance is required, dumped beds are much easier to handle. You can often clean them in place using high-pressure hydro-blasting from the top of the bed. If replacement is necessary, vacuum trucks can quickly extract the old rings through lower manways, and contractors can dump new ones in rapidly. This operational ease drastically reduces turnaround schedules.
Liquid distribution dictates the success of any packed column. However, ordered blocks are incredibly sensitive to distribution quality. They demand highly engineered, precise liquid distributors, such as narrow-trough or pipe-arm designs with high drip-point densities. If a distributor pan is slightly out of level, or if a few drip holes plug with scale, the liquid channels down one side of the block. The vapor bypasses up the dry side. This maldistribution completely destroys the efficiency of the bed. You must audit and upgrade your distributors when switching to ordered blocks.
Installation logistics also differ wildly in the field. Installing ordered blocks is a labor-intensive, precise process. Technicians must maneuver large segmented sections through column manways and stack them perfectly level. They must install wiper bands around the perimeter of every layer to seal against the vessel wall. Any gaps between the blocks and the column wall allow vapor bypassing. Conversely, installing dumped rings is much faster. Contractors load them via super sacks or chutes. However, you must manage this dumping process carefully. Dropping rings from too high causes mechanical damage. You must also level the bed manually after dumping to prevent dense spots. Furthermore, you need to mitigate the risk of bed crushing. Deep beds require intermediate support grids, bed limiters to prevent upward migration during surges, and proper metallurgical selection to ensure mechanical integrity.
Specify dumped rings for fouling services, high-pressure distillation, and rapid turnarounds where rugged reliability is paramount. Specify ordered blocks for vacuum distillation, clean services, and capacity debottlenecking where emission compliance and maximum efficiency are critical. To move forward with your column upgrade, execute the following steps:
Run hydraulic rating simulations using your current feed composition to determine exact HETP and pressure drop requirements.
Audit your existing liquid distributor pans and support ledges to ensure they meet the strict levelness tolerances required for high-efficiency internals.
Measure the column shell for out-of-roundness, as warped vessels make installing rigid corrugated blocks extremely difficult.
Pull historical maintenance logs to verify the fouling history of the unit before committing to tight-geometry internals.
A: Yes, upgrading can significantly debottleneck a column. The uniform vertical channels allow higher vapor velocities before flooding occurs. However, you must upgrade your liquid distributors and support internals simultaneously. Failing to install high-performance distributors causes severe liquid maldistribution, completely negating the capacity and efficiency benefits of the new internals.
A: It features an open, chaotic structure that prevents the rapid accumulation of solids. Particulates and polymers wash through the irregular void spaces rather than getting trapped. In contrast, the narrow, engineered channels of corrugated blocks act like filters, quickly plugging up and forcing unplanned shutdowns in dirty services.
A: Dumped metal internals are significantly faster to procure. The manufacturing process involves rapid stamping and forming of standard metals. Suppliers keep large inventories of common sizes in stock. Custom-engineered blocks require specific design, precise manufacturing, and careful assembly, leading to much longer lead times.
A: A pall ring offers a much lower pressure drop than legacy trays or older solid cylinders like Raschig rings. However, engineered corrugated blocks still provide significantly lower pressure drop per theoretical stage. The chaotic flow path of dumped rings inherently creates more aerodynamic drag than straight vertical channels.
A: Lifespan varies heavily based on process conditions. In clean, non-corrosive services, stainless steel internals last 10 to 15 years or more. However, aggressive chemicals, high operating temperatures, frequent thermal cycling, and harsh mechanical cleaning methods reduce this lifespan to just a few years. Proper metallurgical selection is critical.
A: It is absolutely critical. While all packed columns require good distribution, corrugated blocks are highly sensitive to maldistribution. If liquid does not spread evenly across the top of the bed, dry zones form. Vapor bypasses the liquid entirely, drastically reducing mass transfer efficiency and rendering the internals useless.
