Managing thermal loads efficiently remains a monumental challenge in modern industrial heating and cooling systems. Bridging the immense heat transfer gap between dense liquids and thin gases often dictates whether a system succeeds or fails. Unbalanced heat transfer rates force engineers to rely on unnecessarily massive equipment footprints. Introducing a highly engineered Fin Tube presents the ultimate industry-standard solution. It overcomes stubborn air-side thermal resistance without inflating the equipment footprint exponentially.
Choosing the correct geometry and material pairing does more than just move heat. It directly influences long-term operational expenditure, maintenance cycles, and the physical space your system occupies. You will learn how surface area optimization transforms bare tubes into high-efficiency units. We will explore which applications yield the highest returns. Finally, you will discover how to evaluate finned options effectively to guarantee optimal performance.
Surface Area Optimization: Fin tubes multiply the exterior heat transfer area by up to 10x, enabling compact system designs.
Cost-to-Performance Ratio: Proper specification reduces total fluid requirements and lowers long-term energy consumption.
Material Versatility: Extruded, embedded, and tension-wound configurations allow for highly customized resistance to galvanic corrosion and thermal fatigue.
Risk Mitigation: The primary tradeoff involves balancing fin density (efficiency) against air pressure drop and fouling risks.
Heat transfer systems face a fundamental physics problem. A major disparity exists between liquid and gas heat transfer coefficients. Liquids flowing inside a pipe possess high density and excellent thermal conductivity. They absorb or release heat rapidly. Conversely, gases flowing outside the pipe lack density. Air acts as an insulator compared to water or oil. This creates a severe bottleneck on the air side of the heat exchanger.
Bare tubes cannot resolve this imbalance efficiently. If you rely solely on bare tubes for air heating or cooling, the system requires unsustainable dimensions. Engineers must add hundreds of extra tubes to compensate for poor air-side heat transfer. This approach demands excessive raw materials. It increases the overall weight of the equipment drastically. A bare tube design simply wastes valuable space and resources.

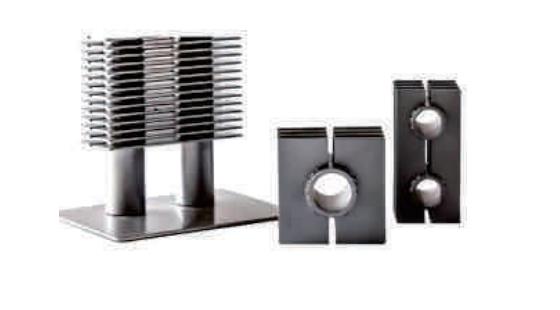

The finned design offers a highly practical solution. Adding thin metal fins to the outer wall artificially increases the external surface area. A standard finned surface can expose up to ten times more metal to the passing air. This expanded surface area compensates for the low thermal conductivity of the gas. The external heat transfer rate finally matches the internal liquid heat transfer rate. By establishing this thermal equilibrium, the entire system operates at peak efficiency.
Extending the surface area allows engineers to design significantly smaller heat exchangers. This footprint reduction saves valuable facility floor space. Plants and mechanical rooms often have strict spatial limits. A compact design fits into tight enclosures easily. You avoid the need for costly structural modifications just to house oversized cooling equipment.
Fluid and pump optimization represent another massive advantage. Smaller overall tube lengths equate to less internal volume. You need less working fluid to charge the system. Reducing the volume of expensive refrigerants or specialized coolants lowers initial expenses immediately. Furthermore, pumps do not have to push liquid through miles of piping. Shorter pipe runs reduce frictional losses. Your system requires much lower pump energy, driving down monthly utility bills.
Specific manufacturing methods enhance equipment durability significantly. Extruded fins, for example, offer superior protection. The manufacturing process creates a continuous sleeve of aluminum over the core pipe. This seamless barrier protects the vulnerable base metal from harsh atmospheric corrosion. Unprotected bare metal degrades quickly in humid or chemical-laden environments. The extended lifecycle of a well-specified finned unit easily outperforms conventional alternatives.
Feature | Bare Tube Exchanger | Finned Tube Exchanger |
|---|---|---|
Surface Area | Base external area only | Up to 10x increased external area |
Footprint | Massive; requires excessive space | Highly compact and modular |
Fluid Volume | High; requires large pump capacity | Low; optimizes pump energy usage |
External Corrosion | High risk without thick coatings | Low risk (especially extruded types) |
Certain industries demand maximum thermal efficiency within constrained environments. Implementing the right extended surface technology provides an immediate return on investment for these specific sectors.
HVAC and Refrigeration: Commercial chillers, condenser coils, and evaporator units rely heavily on this technology. Urban commercial buildings feature strict space constraints. Efficiency mandates force manufacturers to extract every ounce of performance from small units. Finned coils handle massive thermal loads while fitting neatly onto crowded rooftops.
Petrochemical and Refining: Heavy-duty industrial processes generate immense heat. Facilities increasingly utilize an air cooler fin tube framework for process cooling. Water scarcity makes traditional wet cooling towers unviable in many regions. Dry cooling via finned arrays rejects process heat directly into the atmosphere without consuming a single drop of water.
Power Generation: Power plants utilize economizers and heat recovery steam generators (HRSG). Exhaust gases from gas turbines carry valuable waste heat. Finned arrays capture this exhaust heat efficiently. They transfer it back into the boiler feedwater. This process dramatically improves the overall thermal efficiency of the entire power plant.
Not all extended surfaces perform equally. Buyers must evaluate their specific operational environment carefully. The wrong specification leads to premature failure and inflated energy bills.
The attachment method dictates mechanical strength and thermal conductivity limits.
Extruded (Bimetallic): This method forms the fin from an outer aluminum sleeve extruded directly onto the inner pipe. It offers the best high corrosion protection available. It withstands aggressive mechanical cleaning and intense vibration perfectly. It carries the highest upfront cost but delivers unmatched longevity.
Embedded (G-Fin): Manufacturers plow a groove into the base pipe wall. They insert the fin strip tightly into this groove and roll the metal back against it. This mechanical lock withstands extreme thermal expansion. It serves as the best choice for high-temperature cycling applications reaching up to 400°C.
Tension Wound (L-Foot / KL-Foot): The fin strip wraps tightly around the pipe under tension. The base of the fin forms an "L" shape to increase surface contact. This remains the most cost-effective solution. You should specify this only for lower temperature, non-corrosive environments where mechanical stress remains minimal.
Material selection requires evaluating two distinct environments simultaneously. The base pipe handles the internal fluid. You might choose carbon steel for standard water, stainless steel for corrosive chemicals, or titanium for seawater.
The external material interacts with the atmosphere. Aluminum serves as the dominant choice due to its high thermal conductivity and low weight. Copper offers even better heat transfer but weighs more and costs significantly more. You must ensure the chosen pairing withstands both the internal fluid corrosivity and the external atmospheric conditions.
Engineers measure fin density in Fins Per Inch (FPI). Specifying the FPI involves a critical engineering trade-off. A higher FPI means more metal packed into the same space. This increases the total heat transfer area dramatically.
However, packing fins too closely together restricts airflow. The air pressure drop across the coil increases sharply. To overcome this resistance, you must install larger, more powerful fans. These fans consume substantially more electricity. You must balance the desire for maximum thermal efficiency against the penalty of increased fan power consumption.
Even perfectly specified systems require proactive monitoring. Ignoring post-installation maintenance leads to rapid performance degradation.
Fouling and Blockage: High-density fins act like air filters. They trap dust, pollen, and airborne debris easily. This particulate buildup insulates the metal surface. It restricts airflow severely and destroys heat transfer efficiency. Plant managers must implement strictly defined cleaning schedules based on local air quality.
Galvanic Corrosion: Placing dissimilar metals in contact creates a battery effect if moisture is present. Copper and aluminum pairings suffer greatly from this. Exposure to humid or salty air accelerates metal degradation. You must mitigate this risk by utilizing proper bonding techniques, protective coatings, or completely encapsulated extruded designs.
Thermal Contact Resistance Degradation: Tension-wound products rely strictly on physical tension for their bond. Frequent thermal cycling causes the base pipe to expand and contract repeatedly. Over time, this movement stretches the aluminum fin. The fin-to-tube bond loosens. A microscopic gap forms between the two metals, causing a sharp, permanent drop in thermal efficiency.
Extended surface geometries serve as the backbone of modern thermal management. They are not a simple commodity. They represent a highly engineered component designed to balance rigid heat transfer physics against tight operational budgets. Proper specification directly influences your facility's energy consumption and maintenance overhead.
Buyers must prioritize attachment methods and material specifications carefully. Base your shortlisting logic strictly on your specific operating environment. Evaluate your maximum temperatures, atmospheric corrosivity, and available footprint before looking at upfront costs. A cheaper tension-wound coil fails rapidly in a high-temperature, corrosive application.
We strongly encourage you to engage with an application engineer early in the design phase. Run comprehensive thermal modeling software. Execute detailed pressure drop calculations. Validating these metrics before finalizing procurement specifications guarantees a reliable, high-performing system tailored to your exact needs.
A: While the per-meter cost is noticeably higher for finned models, the total heat exchanger cost usually drops. Finned designs provide vastly superior heat transfer rates. Therefore, you require significantly less overall tube length and a much smaller outer shell. This reduction in raw materials makes the total system more economical.
A: Cleaning methods depend on the attachment type. Use low-pressure chemical foams to dissolve dirt gently on delicate tension-wound aluminum fins. For rugged, heavy-duty extruded models, you can safely utilize dry-ice blasting or high-pressure water washing. Always prioritize strict fouling prevention over aggressive reactive cleaning.
A: Yes. You must utilize extruded bimetallic configurations for these environments. The manufacturing process completely encapsulates the corrosion-resistant base core within a thick aluminum outer sleeve. This seamless barrier protects the inner pressure vessel from salt, chemicals, and atmospheric moisture entirely.
