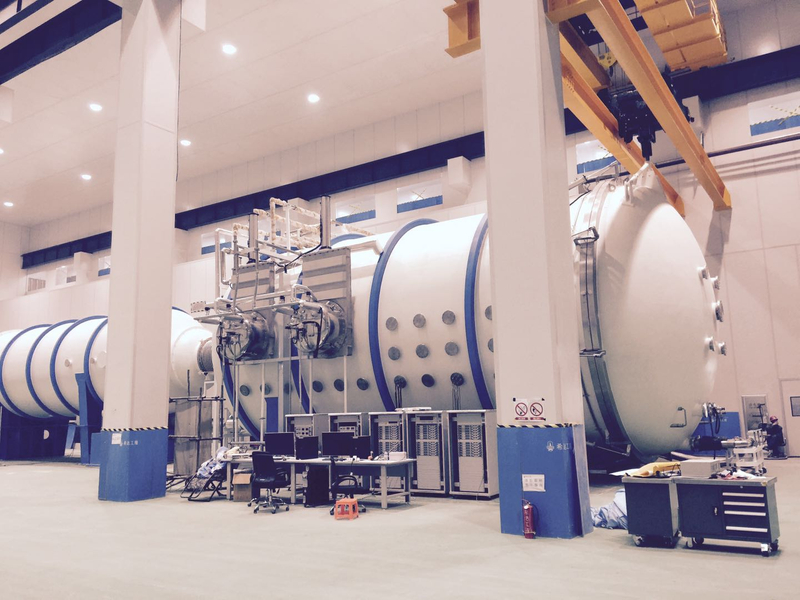

Km6000 Vacuum Chamber Space Environment Simulator

Availability:

Quantity:



Inquire Add to Basket

Product Description

Space Environment Simulator

Application:
To verify the adaptability and stability of the test equipment under high vacuum and low temperature condition.

Technical specification for Vacuum Vessel

1. Structural form	horizontal type
2. Material	S30408 for shell, heads, flanges and internal parts; Q345B for reinforcing rib and skirt material
3. Size of vacuum vessel	6000mm(inner diameter) x 11000mm(straight barrel height)
4. Total leakage rate	≤4*10^-6Pa.m³/s

5. Anti-static, anti-oil, no magnetic or weak magnetic, no pollutants
6. The Gate opening mechanism adopts the lateral and flat opening mode of gantry suspension crane
7. The Gate weight is 20 tons, the maximum outer diameter is φ6940mm, the lateral stroke is 7000mm, the axial stroke is less than 100mm
8. Gate side, axial drive are motor drive, axial movement with encoder

Thermal precipitator

1. Structure	Fin tube type
2. Material	S30408+T2
3. Temperature Range	-196^oC~+150^oC
4. Low operating temperature	100k±5^oC
5. Temperature uniformity	±5^oC
6. Size	5600mm(inner diameter)×11000mm(straight barrel height)
7. Total leakage rate	≤5×10^-6Pa.L/S
8. Black paint half ring emissivity	≥0.9

9. Heat accumulation working pressure is not less than 0.8MPa

Nitrogen system

1. Medium: liquid nitrogen
2. Operating temperature ≤100k
3. Heat accumulation heat load 100kw
4. Realize open flow, empty tank cycle, one-way closed cycle, and can be switched freely
5. The heat sink of the gas-nitrogen system increased from 100k to 300k in 10 hours

Vacuum system
Equipped with vacuum pump, valve, pipe, instrument, etc

Monitoring system
Meet KM6000 control requirements

Vacuum Chamber Vacuum Simulator Vacuum Container
