| Quantity: | |
|---|---|

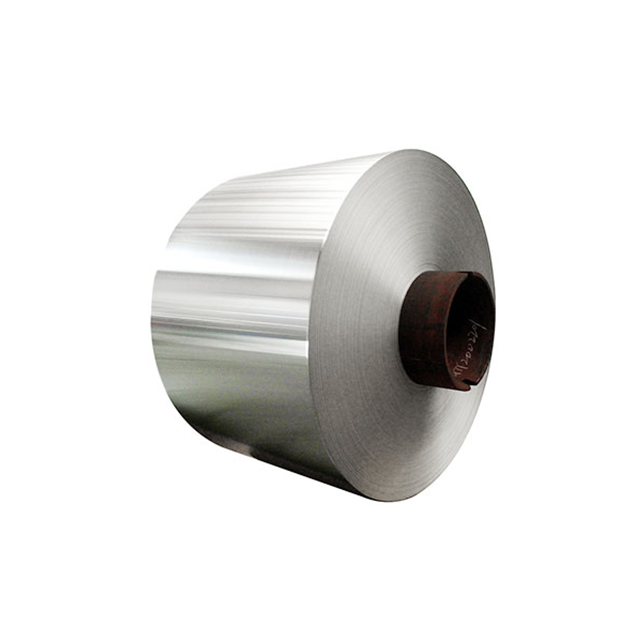

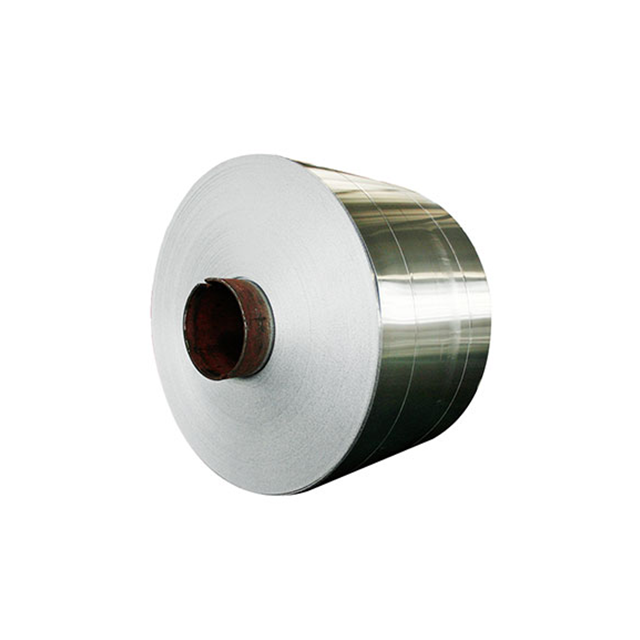

1. Aluminium coil details
Aluminium coil/Aluminium Strip | |||
Aluminium Alloy | Thickness | Width (mm) | Temper |
A1050,A1060,A1070,A1100 | 0.15-10 | 20-2620 | O,H12,H14,H16,H18,H22,H24,H26 |
A3003,A3004,A3105 | 0.15-10 | 20-2620 | O,H12,H14,H16,H18,H22,H24,H26 |
A5052,A5005,A5083,A5754 | 0.15-10 | 20-2620 | O,H12,H14,H34,H32,H36,H111,H112 |
A6061,A6082,A6063 | 0.15-10 | 20-2620 | T4,T6,T651 |
A8011 | 0.15-10 | 20-2620 | O,H12,H14,H16,H18,H22,H24,H26 |
Material process | both CC AND DC | ||
Customerize size | Size can be produced as per clients requirement | ||
Surface | Mill finish ,Color coated(PVDF& PE),Stucco Embossed ,Bright Polish ,Anodizing | ||
Mirror,Brush,Perforated,Tread plate ,with polykraft or polysurlyn back etc | |||
Quality Standard | ASTM B209,EN573-1 | ||
MOQ per size | 2 tons | ||
Payment Terms | TT OR LC OR DP at sight | ||
Delivery time | Within 25 days after receipt the lc or deposit | ||
Material Quality | tension levelled,Free of defects like oil stain,Roll Marks,Waves,Dents, Scratch etc , | ||
A+++ quality | |||
Application | Construction ,Building,ACP,Decoration ,Roofing,Mould,Ship Building,Lighting, | ||
Aircraft,Oil Tank ,Truck Body, | |||
Packing | Standard export worthy wooden pallets,and standard packing is about 2.5 tons/pallet | ||
coil ID:508MM | |||
coil weight also can be as per client's requirement from 50kgs to 8000 kgs per coil | |||
2. Production standard :as per international standard ASTM OR EN standard ,
all chemical composition ,mechanical property ,size tolerance ,flat tolerance ,etc strictly as per ASTM OR EN standard.
Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Other | Al | |
Single | Total | ||||||||||
1050 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | _ | 0.05 | 0.03 | 0.03 | _ | ≥99.5 |
1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | _ | 0.05 | 0.03 | 0.03 | _ | ≥99.6 |
1100 | Si+Fe:0.95 | 0.05~0.40 | 0.05 | _ | _ | 0.1 | _ | 0.05 | 0.15 | ≥99 | |
1200 | Si+Fe:1.00 | 0.05 | 0.05 | _ | 0.1 | 0.05 | 0.05 | 0.15 | ≥99 | ||
3003 | 0.6 | 0.7 | 0.05~0.20 | 1.0~1.5 | _ | _ | 0.1 | _ | 0.05 | 0.15 | Remainder |
3105 | 0.6 | 0.7 | 0.3 | 0.30~0.8 | 0.20~0.8 | 0.2 | 0.4 | 0.1 | 0.05 | 0.15 | Remainder |
5005 | 0.3 | 0.7 | 0.2 | 0.2 | 0.50~1.1 | 0.1 | 0.25 | _ | 0.05 | 0.15 | Remainder |
5052 | 0.25 | 0.4 | 0.1 | 0.1 | 2.2~2.8 | 0.15~0.35 | 0.1 | _ | 0.05 | 0.15 | Remainder |
5083 | 0.4 | 0.4 | 0.1 | 0.40~1.0 | 4.0~4.9 | 0.05~0.25 | 0.25 | 0.15 | 0.05 | 0.15 | Remainder |
5086 | 0.4 | 0.5 | 0.1 | 0.20~0.7 | 3.5~4.5 | 0.05~0.25 | 0.25 | 0.15 | 0.05 | 0.15 | Remainder |
6061 | 0.4~0.8 | 0.7 | 0.15~0.40 | 0.15 | 0.80~1.20 | 0.04~0.35 | 0.25 | 0.15 | 0.05 | 0.15 | Remainder |
6063 | 0.2~0.6 | 0.35 | 0.1 | 0.1 | 0.45~0.90 | 0.1 | 0.1 | 0.1 | 0.05 | 0.15 | Remainder |
6082 | 0.7~1.3 | 0.5 | 0.1 | 0.4~1.0 | 0.6~1.2 | 0.25 | 0.2 | 0.1 | 0.05 | 0.15 | Remainder |
8011 | 0.5~0.9 | 0.6~1.0 | 0.1 | 0.2 | 0.05 | 0.05 | 0.1 | 0.08 | 0.05 | 0.15 | Remainder |
